Pump flow: 126m³/h to 21800m³/h
Pump head: 10m to 140m
Travel speed: 20km/h to 60km/h

Premium materials: The pump body and impeller are constructed from QT500, while the pump shaft is made from durable 40Cr alloy steel, guaranteeing strength and longevity.

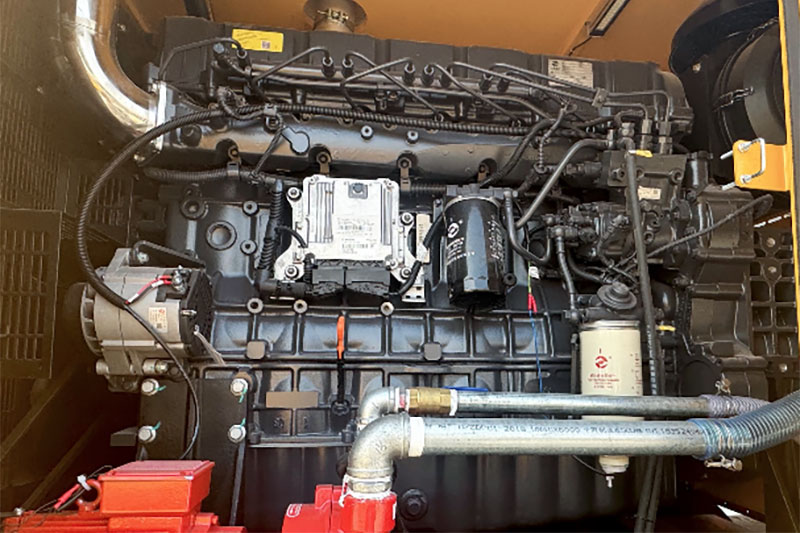

Vacuum-assisted system: The double-suction pump is equipped with a vacuum assist system, which includes a vacuum pump and related accessories. The vacuum pump is driven by the main diesel engine.

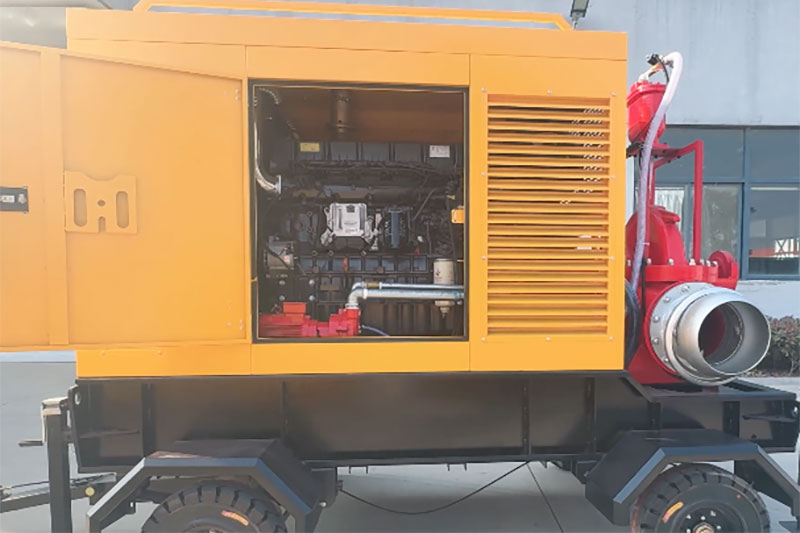

Durable enclosure: The robust enclosure, crafted from high-quality galvanized steel plate (minimum 2.0mm thickness) with sandblasting, rust prevention, and a 300-degree high-temperature plastic spraying and baking finish, provides superior protection. Access doors on both sides facilitate easy control system observation, operation, inspection, and maintenance.

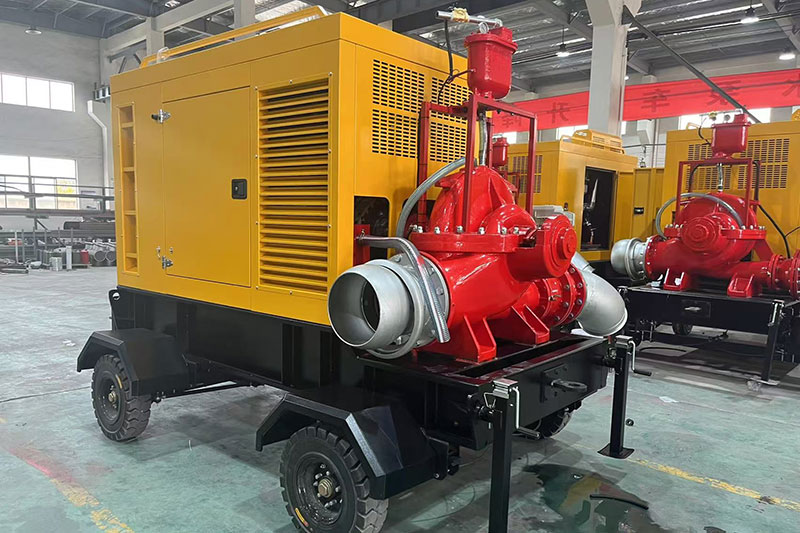

Mobile platform: Customizable two-wheel or four-wheel trailer configurations, with a versatile drawbar and integrated braking system. The versatile trailer drawbar accommodates various tractor heights, ensuring easy maneuverability. The integrated driving inertia braking system ensures safe transport at speeds from 20km/h to 60km/h.
Intelligent control: The system uses an intelligent controller that displays key diesel engine parameters, such as water temperature, oil pressure, oil temperature, and speed. The controller also detects faults (e.g., high oil temperature, low oil pressure) and provides alarm notifications. The unit is equipped with an "emergency stop" button and overload protection for enhanced safety.

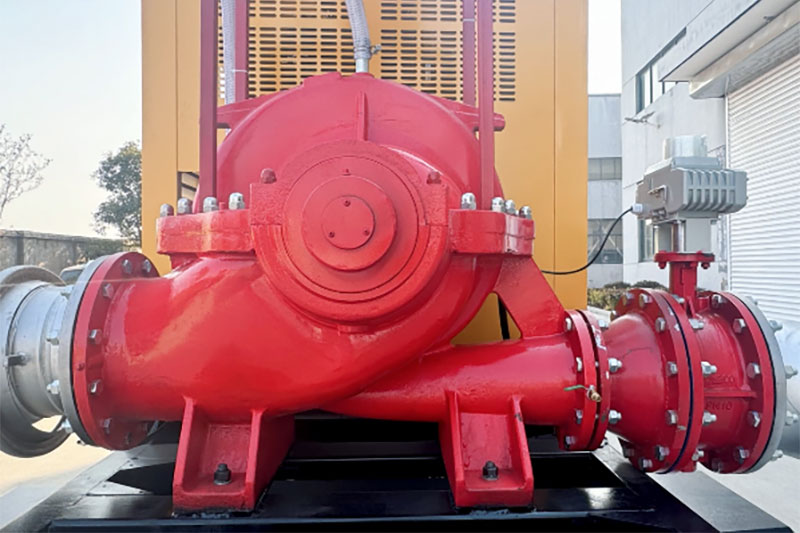

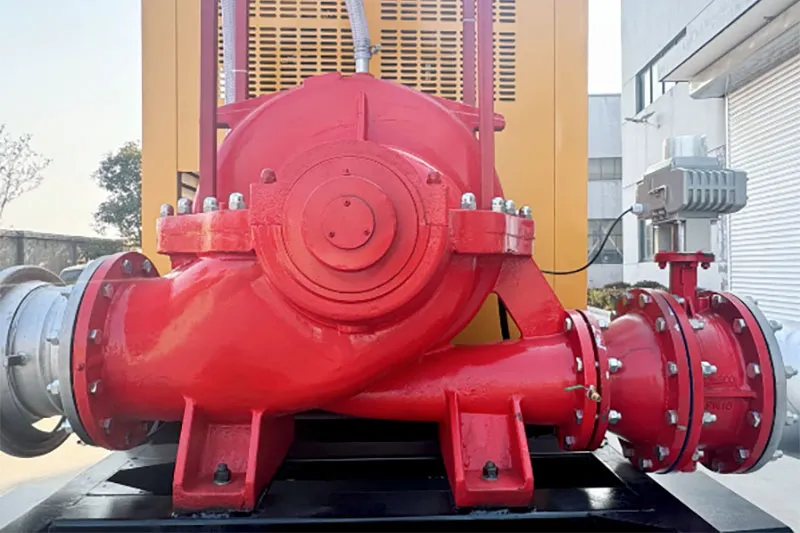

• Smooth operation: The optimized design of the double-suction impeller reduces axial forces to a minimum. The impeller’s superior hydraulic performance, precision casting, and smooth surfaces provide excellent cavitation resistance and high efficiency.
• Premium bearings: SKF and NSK bearings are used to ensure smooth operation with low noise and long service life.
• Reliable shaft seals: The pump uses mechanical or packing seals that guarantee leak-free operation for up to 8,000 hours of continuous use.

This product is driven by a diesel engine to power a high self-priming pump and can be widely used in various sectors such as:

• Agricultural applications: Suitable for field and orchard irrigation and drainage.
• Construction applications: Provides building water supply and drainage, boiler feed water, water pressure boosting, HVAC systems, fire-fighting equipment, and other general water supply equipment.
• Water resources applications: Offers water diversion, irrigation, drainage, municipal water supply systems, power plants (ash removal, condensate, cooling water, boiler water), and more.
• Industrial applications: Widely used in chemical, petroleum, metallurgy, environmental protection, food processing, pharmaceutical industries, and others.
