5kW/8kW/9kW Gasoline Genset

Air-Cooled Open Frame Gasoline Generators (Single Cylinder)

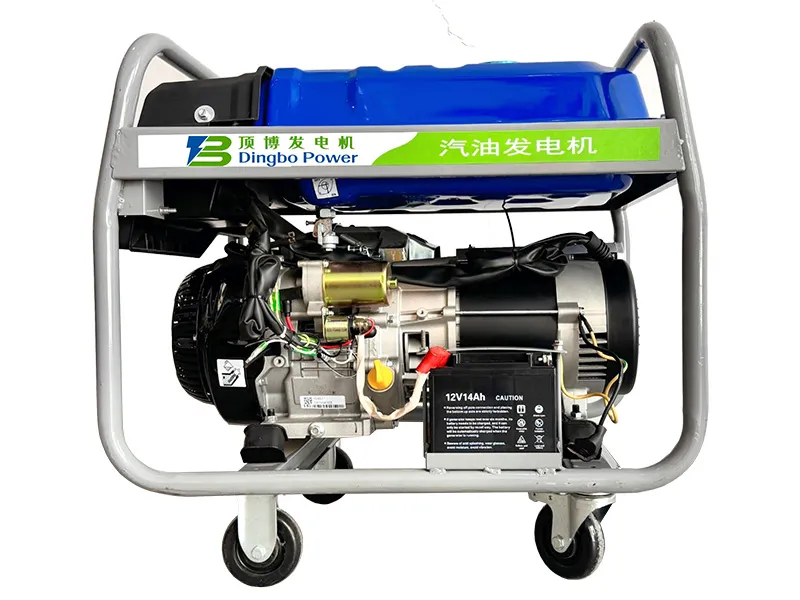

5kW Air-Cooled Gasoline Generators
5kW Air-Cooled Gasoline Generators
  • 5kW Air-Cooled Gasoline Generators
  • 5kW Air-Cooled Gasoline Generators
  • 5kW Air-Cooled Gasoline Generators
  • 5kW Air-Cooled Gasoline Generators
  • 5kW Air-Cooled Gasoline Generators
  • 5kW Air-Cooled Gasoline Generators
    • Request a Quote

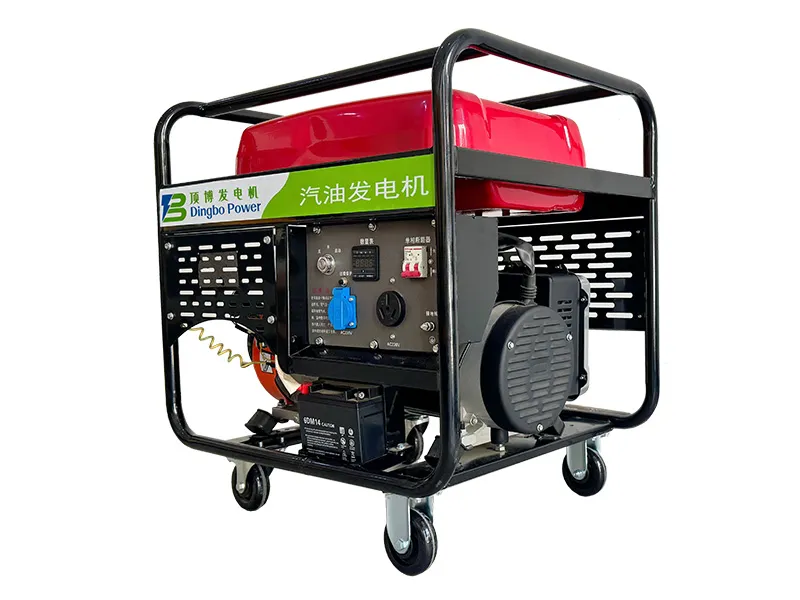

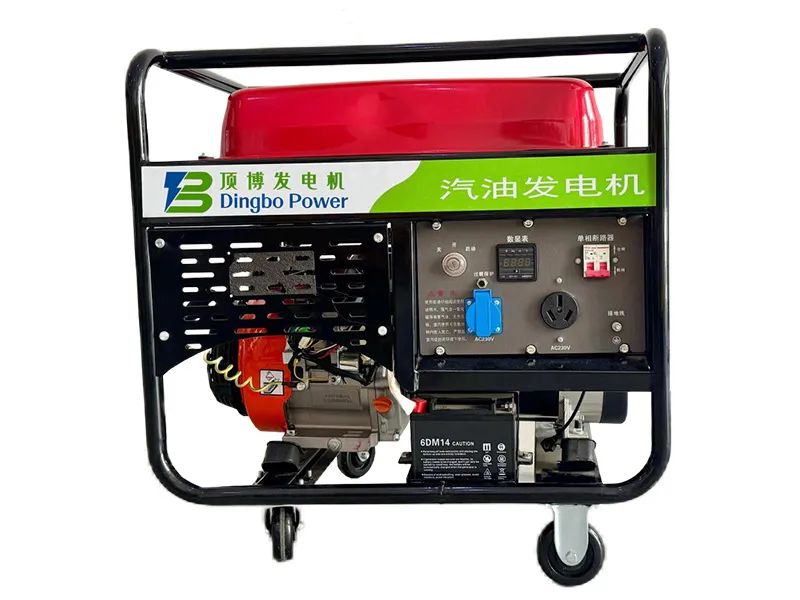

    8kW/9kW Air-Cooled Gasoline Generators
    8kW/9kW Air-Cooled Gasoline Generators
  • 8kW/9kW Air-Cooled Gasoline Generators
  • 8kW/9kW Air-Cooled Gasoline Generators
  • 8kW/9kW Air-Cooled Gasoline Generators
  • 8kW/9kW Air-Cooled Gasoline Generators
  • 8kW/9kW Air-Cooled Gasoline Generators
  • 8kW/9kW Air-Cooled Gasoline Generators
    • Request a Quote
    Features

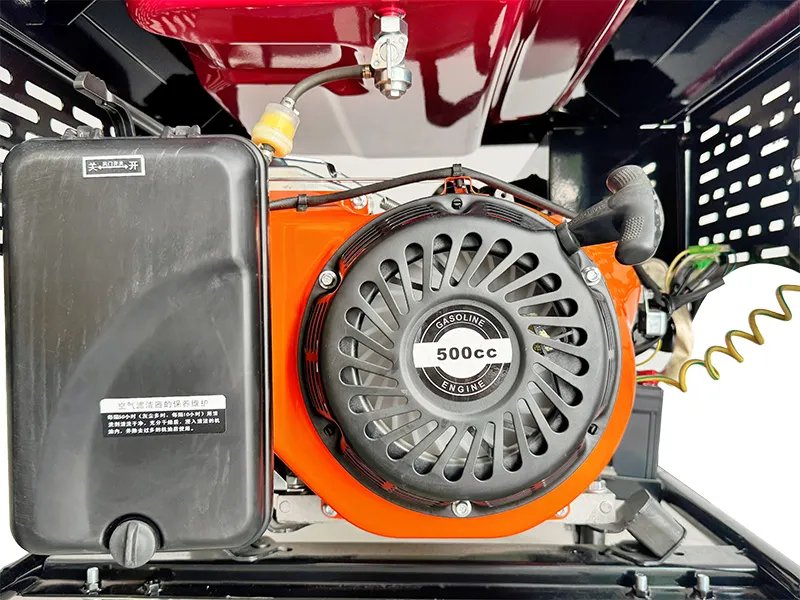

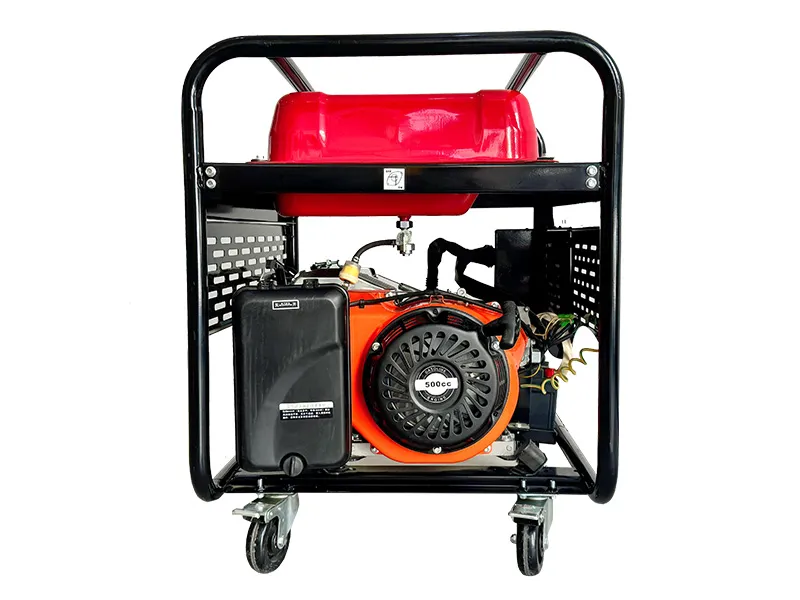

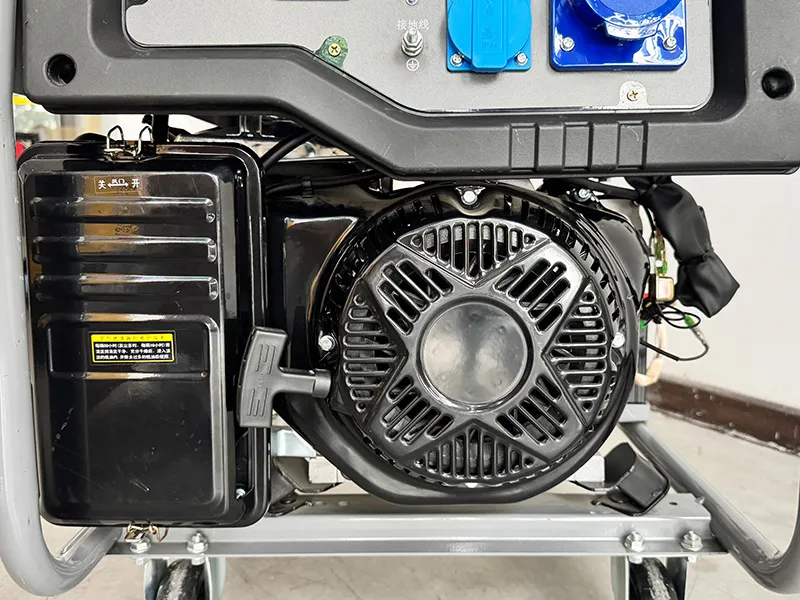

    • The air-cooled open frame gasoline generator is equipped with a forced air-cooled, single-cylinder 4-stroke gasoline engine that ensures low emissions, stable performance, and high durability—suitable for various outdoor and emergency situations.
    • This generator delivers consistent power with an all-copper alternator and integrated Automatic Voltage Regulator (AVR), ensuring stable output and reliable excitation even under fluctuating loads.

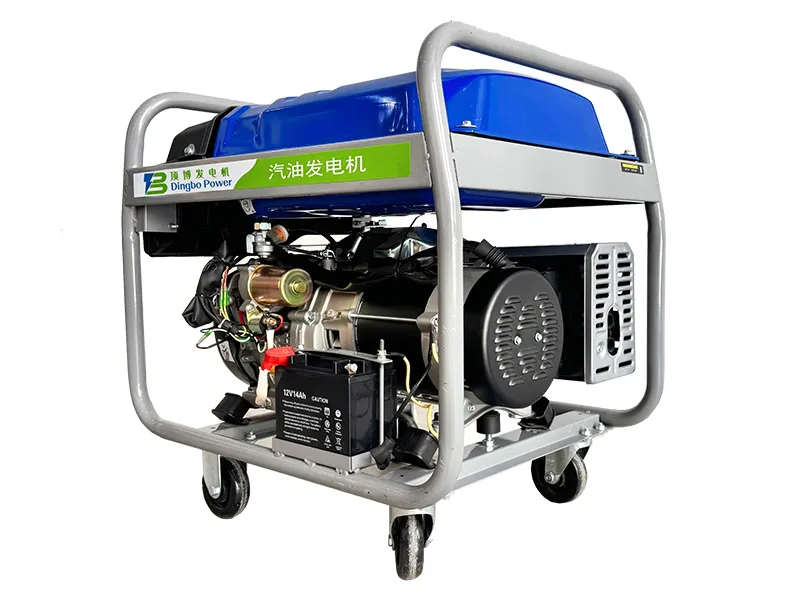

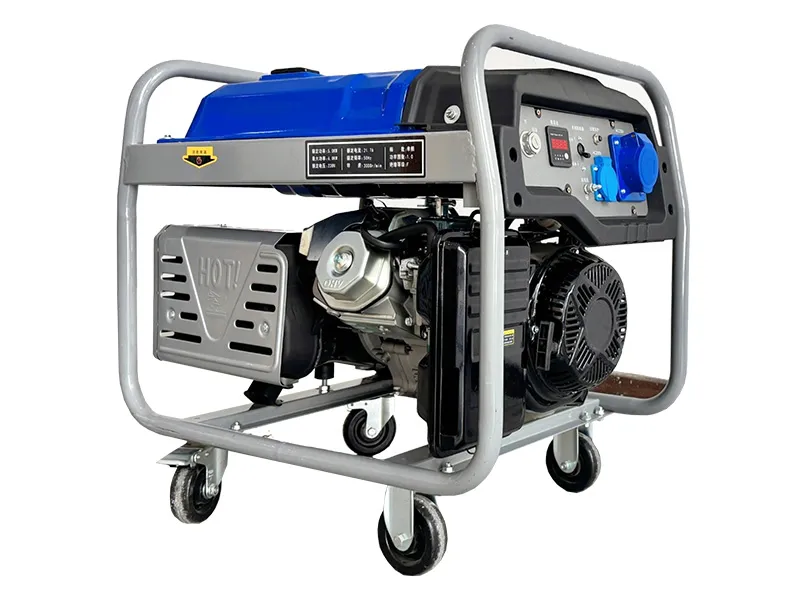

    • Designed with a reinforced heavy-duty steel frame for durability and corrosion-resistant paint, making it sturdy and long-lasting. Comes standard with caster wheels for enhanced portability.

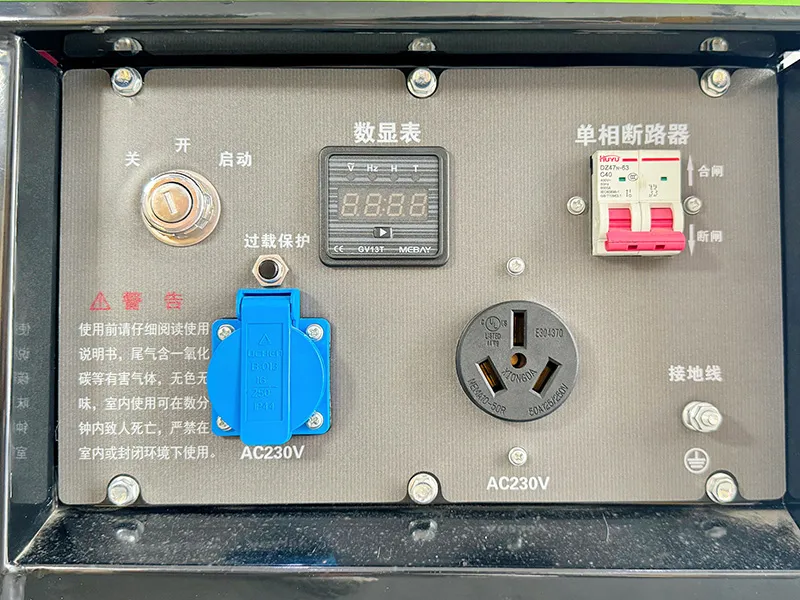

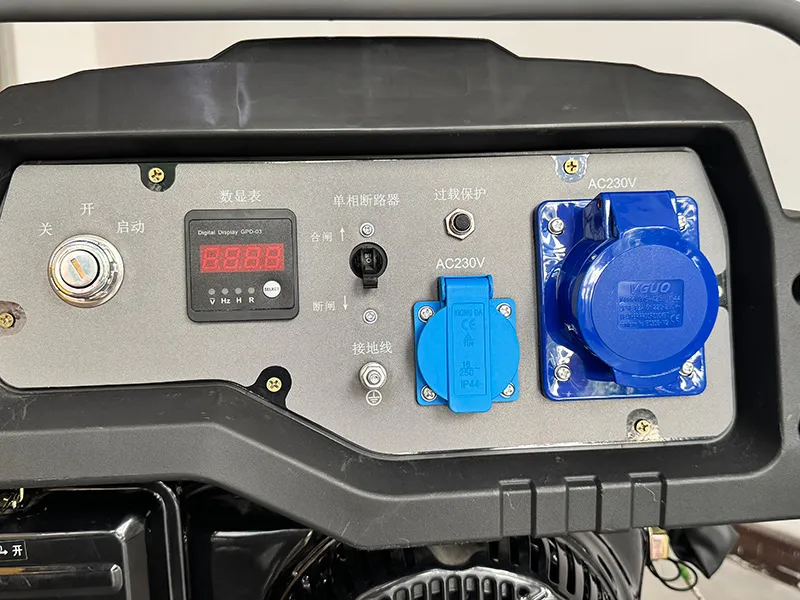

    • The single-cylinder generator is integrated with an overload circuit breaker and a low oil level shutdown system to ensure safe and stable operation in demanding conditions.
    • It is fitted with a specially tuned muffler system that effectively reduces noise output, making it more suitable for use in work zones, rural areas, or job sites with sound level requirements.
    Specifications
    Genset Model DB6600E DB10000E DB12000E
    Alternator Excitation Mode AVR (automatic voltage regulation) AVR (automatic voltage regulation) AVR (automatic voltage regulation)
    Rated Output Power (kW) 5.0 8.0 9.0
    Max. Output Power (kW) 5.5 8.5 9.5
    Rated Voltage (V) 230 230 230
    Rated Current (A) 21.7 34.8 39.0
    Max. Current (A) 26.0 37.0 41.0
    Rated Frequency (Hz) 50 50 50
    Phase Single phase
    Power Factor (COSφ) 1.0 1.0 1.0
    Insulation Class F F F
    Engine Engine Model DH190FD DH500 DH550
    Bore Size×Stroke (mm) 90×66 94×76 94×76
    Displacement (cc) 420cc 500cc 550cc
    Fuel Consumption (g/kWh) ≤374 ≤374 ≤374
    Ignition Electronic ignition
    Engine Type 1 cylinder, 4-stroke, air-cooled
    Fuel Type 90# lead-free gasoline
    Oil Capacity (L) 1.1 1.1 1.1
    Starting System Electric Start Electric Start Electric Start

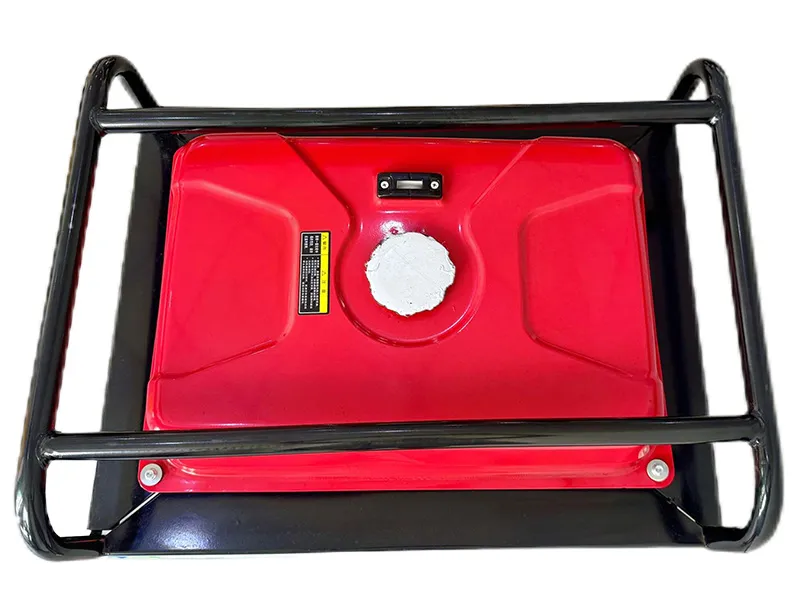

    Genset Fuel Tank (L) 25 40 40

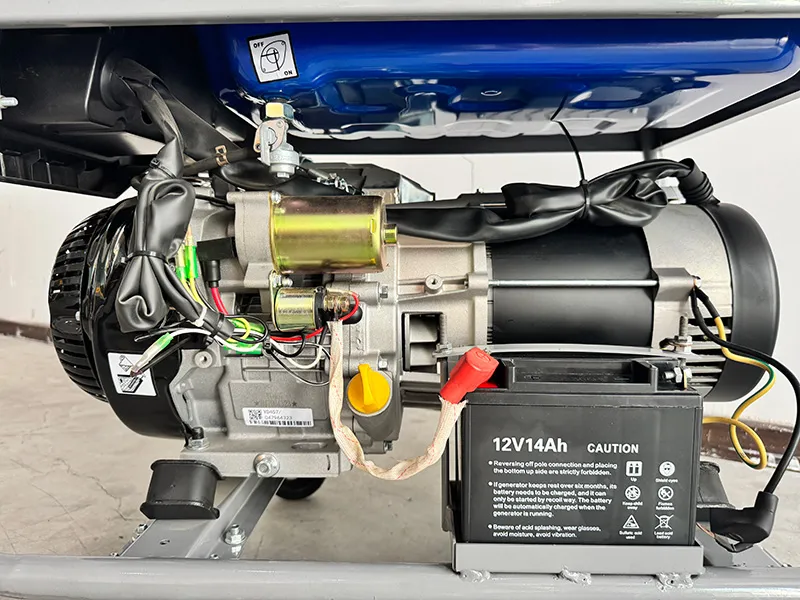

    Battery 12V-14AH maintenance-free battery
    Noise Level (dBA/7m) 75 80 80
    Dimension (mm) 716×531×570 745×590×645 745×590×645
    Weight (kg) 80kg 98kg 105kg
