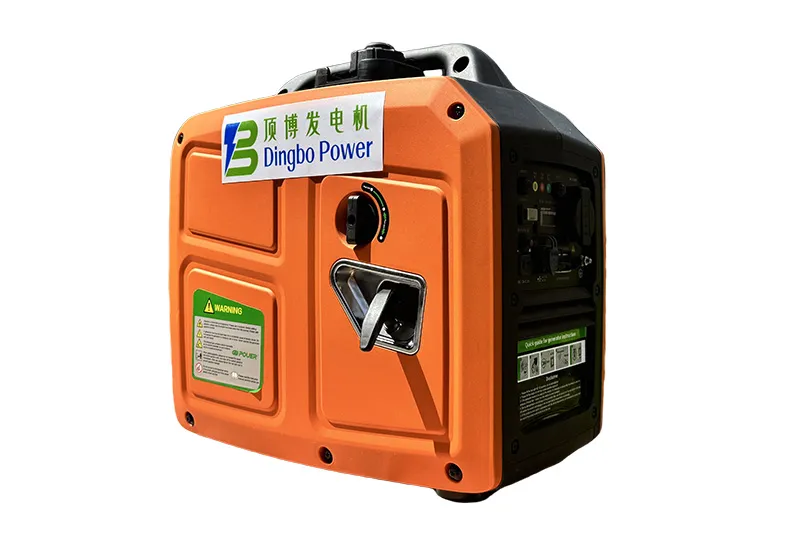

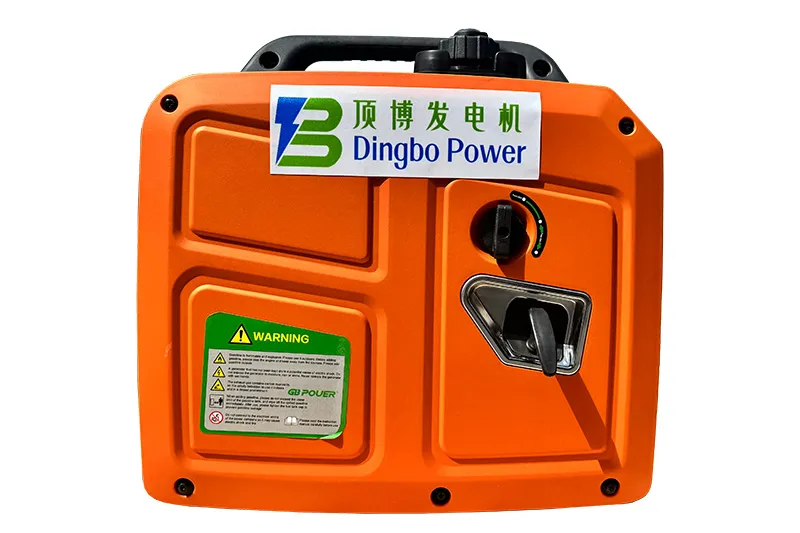

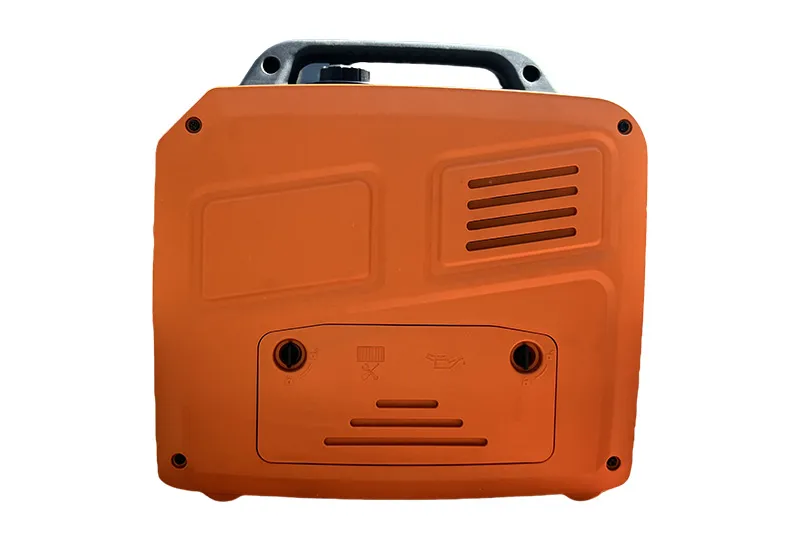

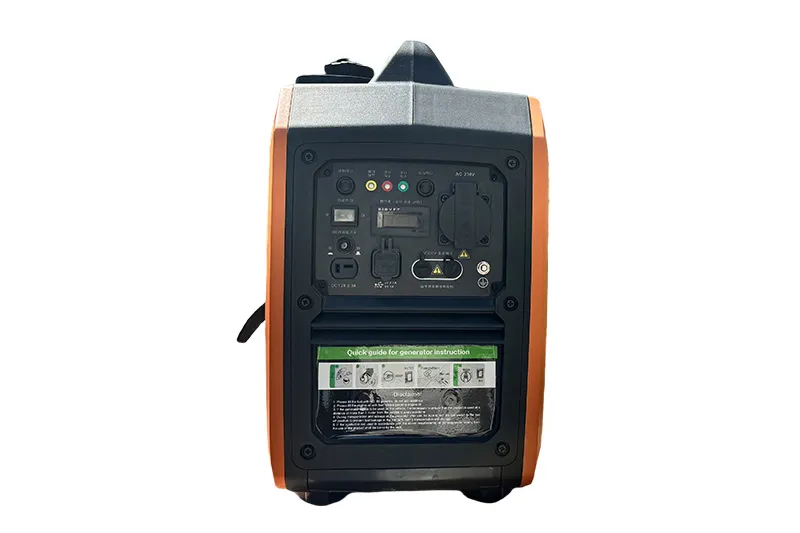

Portable Silent Gasoline Inverter Generators

Features

Inverter technology for clean and stable power
Portable silent gasoline genset is equipped with an advanced inverter technology to deliver pure sine wave output with total harmonic distortion (THD) less than 3%, making it safe for sensitive electronics and precision equipment.

Ultra-quiet operation

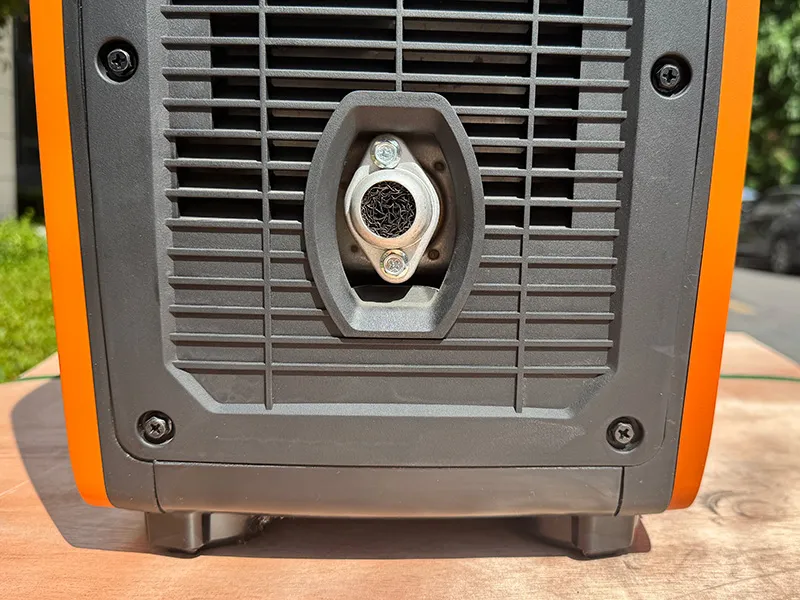

The generator employs high-efficiency sound insulation and muffler systems, thereby operating with minimal noise and making it suitable for use in quiet environments such as campsites, outdoor events, or residential areas.

Lightweight and compact design
The portable gasoline generator adopts a lightweight and compact design, engineered for portability. The units are compact and easy to carry or move, making them a practical solution for emergency backup, outdoor needs, or recreational use.

Fuel-efficient and eco-friendly
Smart throttle technology adjusts engine speed according to load, reducing fuel consumption and emissions during low-load operation. This results in lower operational costs and environmentally friendly.

Quick-start function
The portable silent generator is equipped with electric start (plus recoil start on some models), enabling quick and reliable power-up when grid power fails.

Durable and easy maintenance

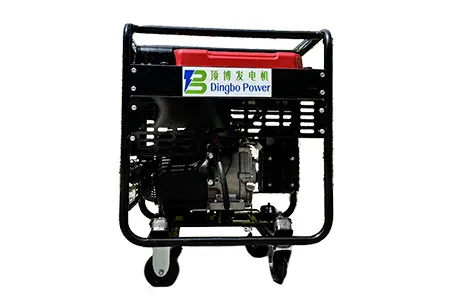

The generators are durable and easy to maintain, with a high-quality engine paired with an efficient inverter alternator that offers excellent heat dissipation and strong overload resistance. Open-frame layout allows easy access for routine maintenance.

Parallel connection power expansion
Supports parallel operation, allowing multiple compatible units to be connected for increased output and handling higher power demands.

Specifications

Genset Model		DB4000iSE 3kW Portable Silent Gasoline Inverter Generator	DB6500iSE 5kW Portable Silent Gasoline Inverter Generator
Alternator	Excitation Mode	PMG inverter type	PMG inverter type
	Rated Power (kW)	3	5
	Max. Power (kW)	3.2	5.5
	Rated Voltage (V)	230	230
	Rated Frequency (Hz)	50	50
	Phase	Single phase	Single phase
	Power Factor (COSφ)	1.0	1.0
	Insulation Class	F	F
Engine	Engine Model	DH141	170F
	Bore Size×Stroke (mm)	58×55	70×66
	Displacement (cc)	141	223
	Engine Type	1 cylinder, air-cooled, 4-stroke	1 cylinder, air-cooled, 4-stroke
	Fuel Type	Gasoline	Gasoline
	Oil Capacity (L)	0.6	0.7
	Starting System	Recoil/Electric Start	Recoil/Electric /Remote Start
Genset	Fuel Tank (L)	5	10
	Noise Level (dBA/7m)	68	65
	Parallel Function	√	√
	Dimension (mm)	587×373×516	590×390×547
	Weight (kg)	25	40
