    Features
    • Multi-function power and welding integration
      This all-in-one water-cooled diesel generator combines power generation and welding capabilities, meeting both electricity supply and on-site welding needs. It comes standard with Tungsten Inert Gas (TIG) and Metal Inert Gas (MIG) welding functions, and can be customized for additional welding technologies upon request.
    • Low-noise and vibration-free operation
      Constructed with a noise-reducing enclosure and specially designed muffler to substantially decrease sound levels and ensure near-silent operation, with minimal vibration—ideal for noise-sensitive environments.
    • Stable performance with strong output

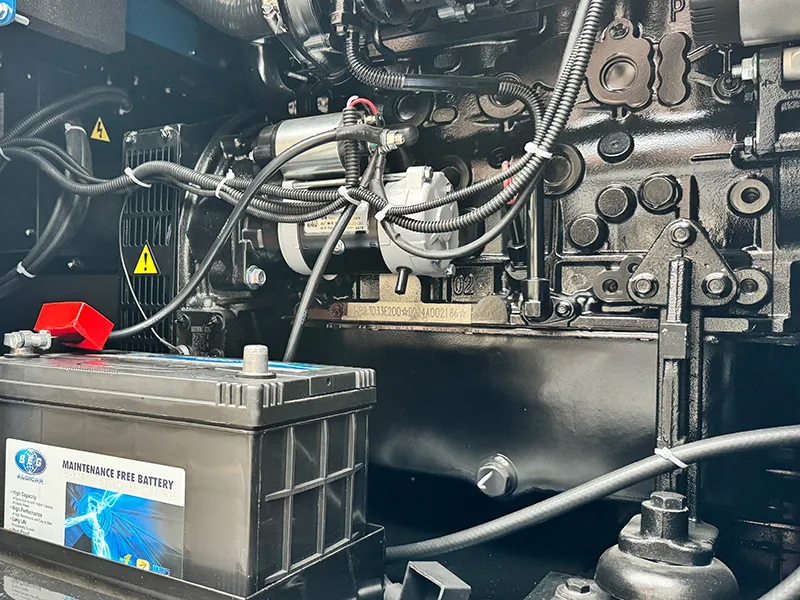

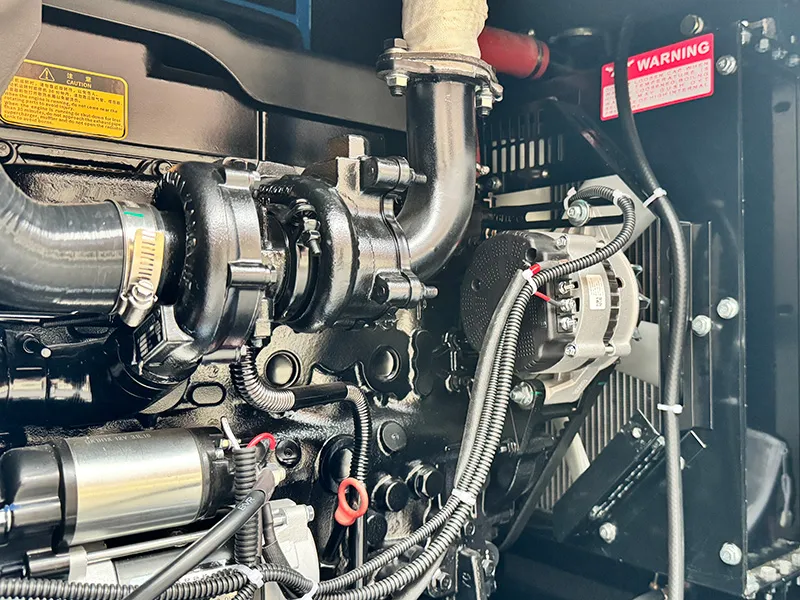

      Powered by a durable four-cylinder, water-cooled diesel engine that delivers reliable and consistent power. It provides smooth voltage regulation and stable welding current suitable for demanding field applications.

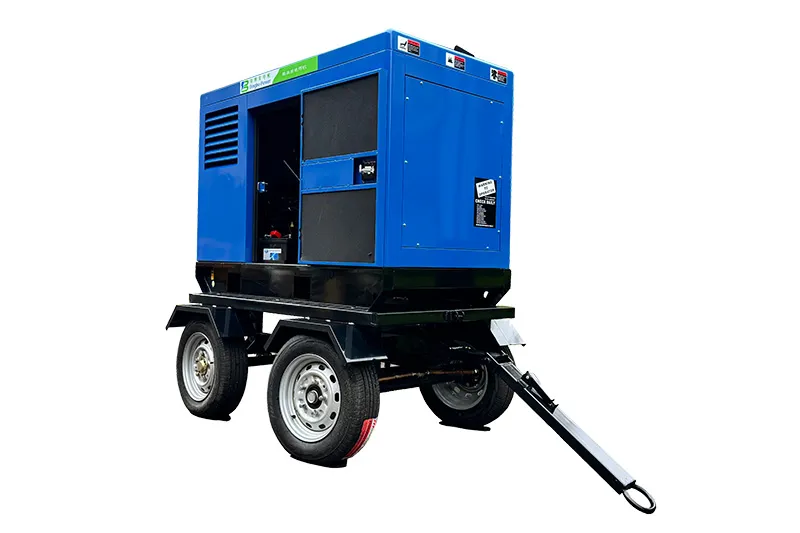

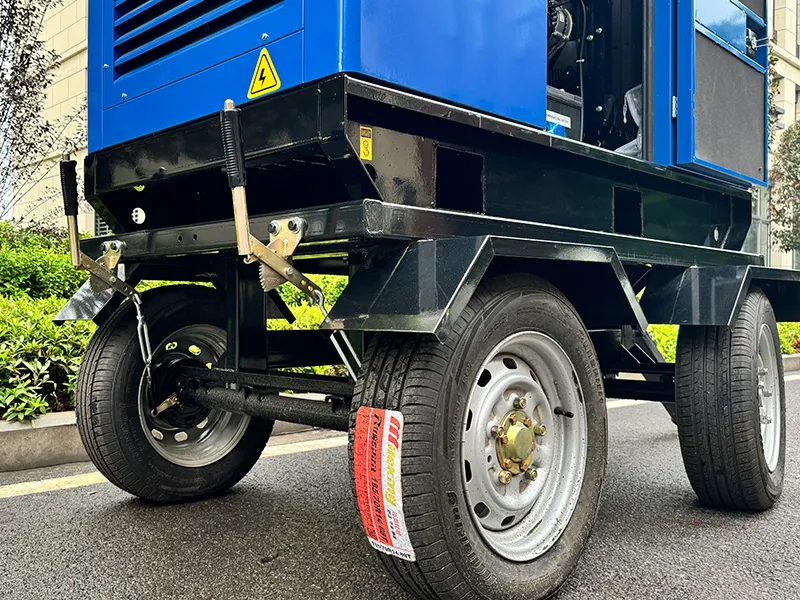

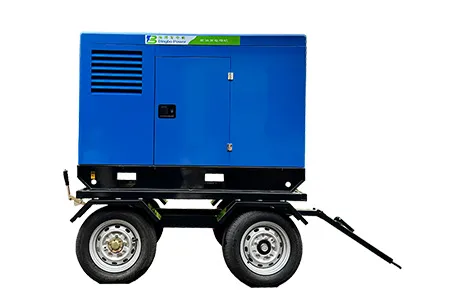

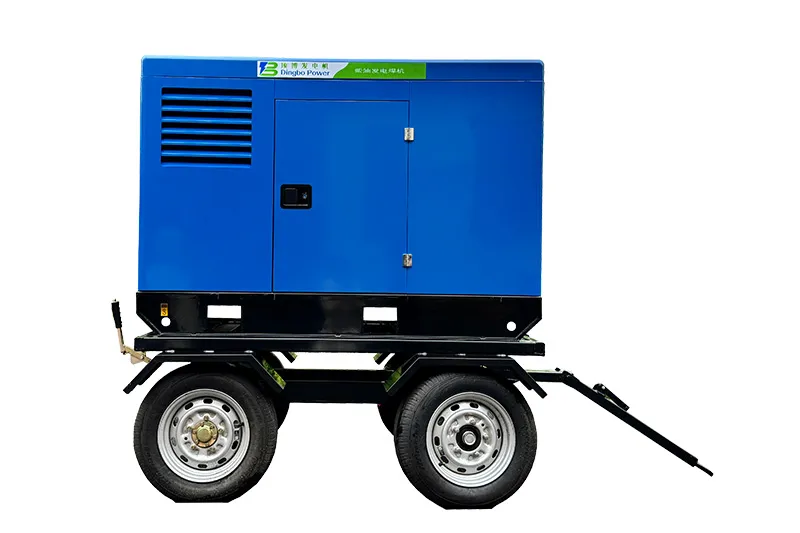

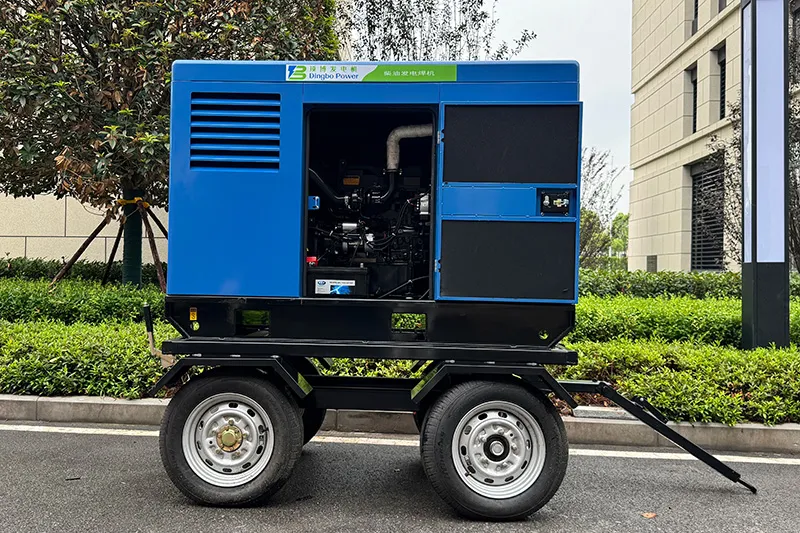

    • Optional trailer for improved mobility
      Can be equipped with a towable trailer to enhance mobility, suitable for mobile construction sites, pipeline repairs, or outdoor industrial welding tasks.
    Specifications
    Model DB-AXC-300A DB-AXC-400A DB-AXC-500A DB-AXC-600A
    Welder Welding Type TIG (GTAW gas tungsten arc welding)
    MIG (GMAW gas metal arc welding)
    NO. of Welding Torch One & Two
    No-Load Voltage (V) 60-70 60-70 60-70 60-70
    Welding Voltage (V) 22-28 22-28 22-28 22-28
    Welding Current (A) 30-400 30-500 30-600 30-300
    Load Continuous Rate 60% 60% 60% 60%
    Auxiliary Power AC380V/20kW AC380V/30kW AC380V/50kW AC380V/20kW
    Engine Engine Model WP2.3D25E200 WP2.3D33E200 WP4.1D66E200 WP2.3D25E200
    Engine Type 4 cylinder, water-cooled, direct injection
    Bore Size×Stroke (mm) 89×92 89×92 89×92 89×92
    Displacement (L) 2.3 2.3 2.3 2.3
    Starting System Electric Start
    Oil Capacity (L) 8 8 13 8
    Generator Fuel Tank Capacity (L) 70 70 70 70
    Noise Level (dBA/7m) 75 75 75 75
    Dimension (body /with trolley) (mm) 1800×900×1100 /2340×1210×1800 1800×900×1100 /2340×1210×1800 2200×1050×1300 /2740×1360×2000 1800×900×1100 /2340×1210×1800
    Weight (body /with trolley) (kg) 700/885 716/902 920/1106 700/885
