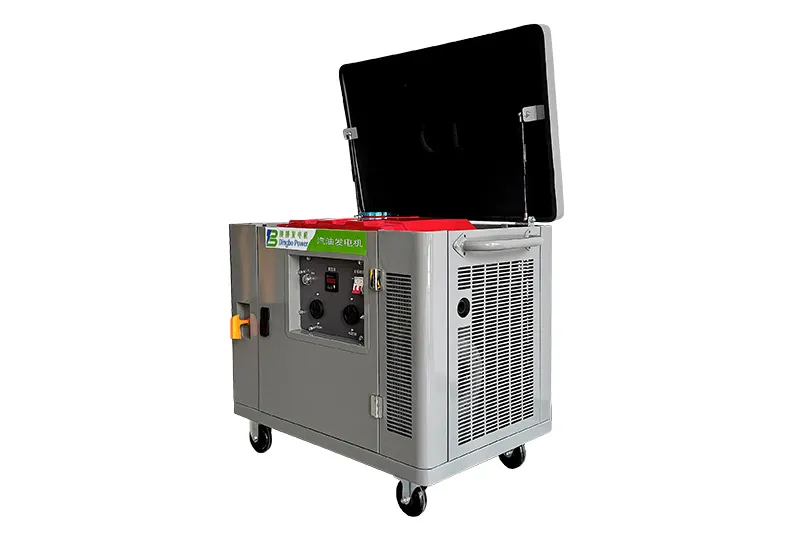

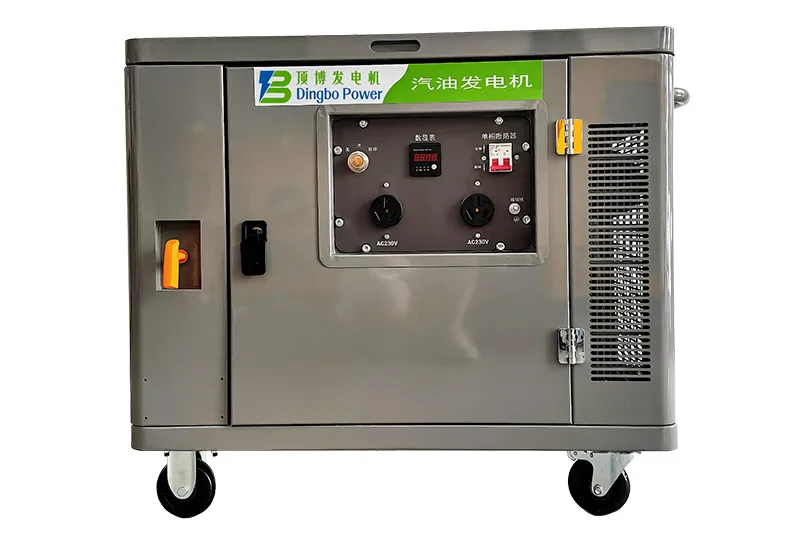

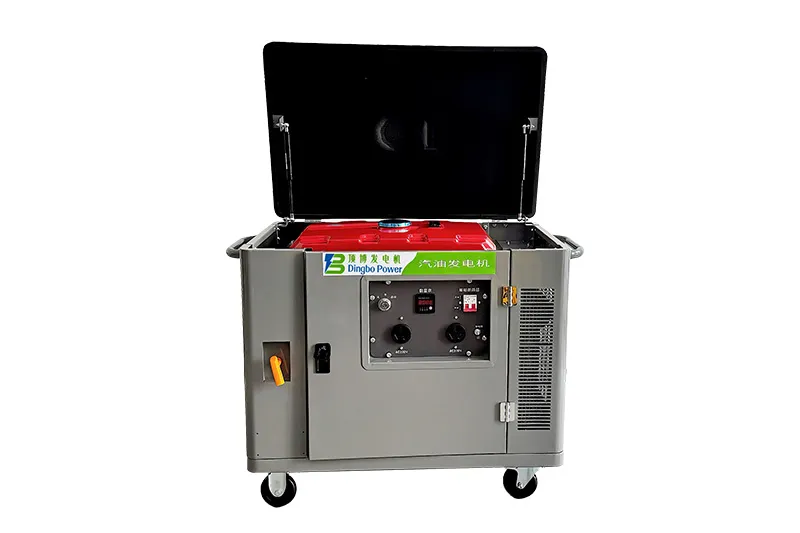

5kW/8kW/9kW Gasoline Genset

Air-Cooled Silent Gasoline Generators (Single Cylinder)

Air-Cooled Silent Gasoline Generators (Single Cylinder)
  • Air-Cooled Silent Gasoline Generators (Single Cylinder)
  • Air-Cooled Silent Gasoline Generators (Single Cylinder)
  • Air-Cooled Silent Gasoline Generators (Single Cylinder)
  • Air-Cooled Silent Gasoline Generators (Single Cylinder)

    • 5kW/8kW/9kW Gasoline Genset

    Air-Cooled Silent Gasoline Generators (Single Cylinder)

    • Air-Cooled Silent Gasoline Generators (Single Cylinder)
    • Air-Cooled Silent Gasoline Generators (Single Cylinder)
    • Air-Cooled Silent Gasoline Generators (Single Cylinder)
    • Air-Cooled Silent Gasoline Generators (Single Cylinder)
    Request a Quote
    Features
    • The air-cooled, silent gasoline generator is powered by a single-cylinder, 4-stroke, air-cooled engine with low emissions and stable output—ideal for residential backup, outdoor activity, or mobile operations.

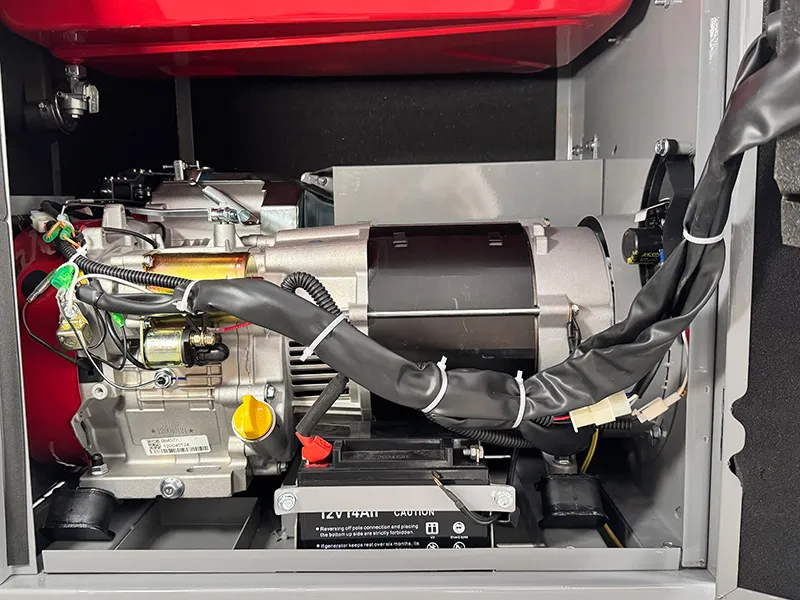

    • Built with a full copper alternator and automatic voltage regulator (AVR), ensuring consistent voltage and strong excitation performance for sensitive loads.
    • Reinforced with a heavy-duty steel frame, the gasoline genset comes standard with caster wheels, allowing smooth transport and deployment in varied environments.

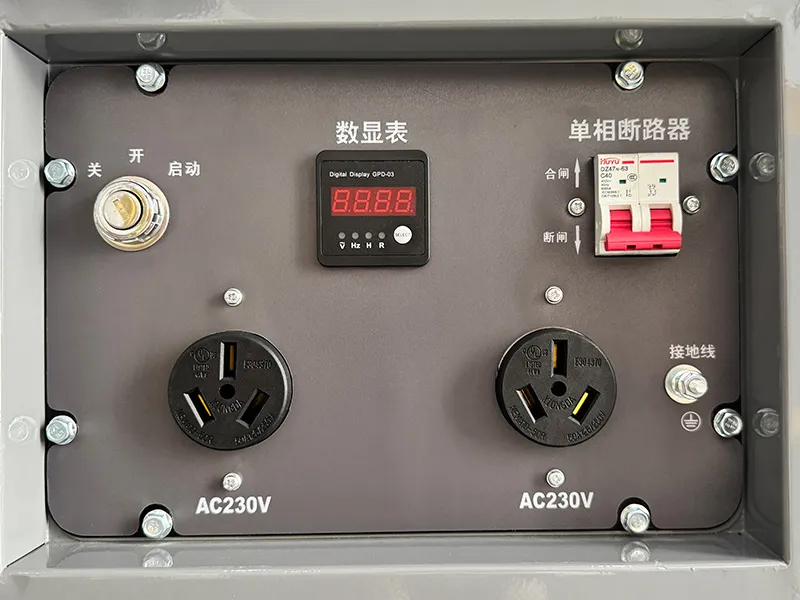

    • This silent gasoline generator offers multiple safety features, including a low oil alert and an overload circuit breaker to protect the engine and electrical system during operation.

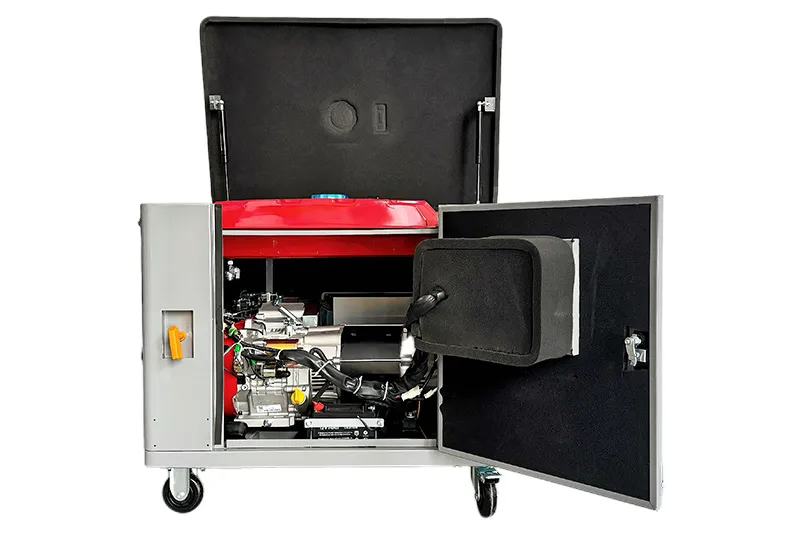

    • The air-cooled genset is equipped with a customized muffler system for quiet operation and enclosed design to reduce noise output, which is ideal for use in quiet neighborhoods or sound-sensitive settings.
    Specifications
    Genset Model DB6600ES DB10000ES DB12000ES
    Alternator Excitation Mode AVR (automatic voltage regulation)
    Rated Output Power (kW) 5.0 8.0 9.0
    Max. Output Power (kW) 5.5 8.5 9.5
    Rated Voltage (V) 230V 230V 230V
    Rated Current (A) 21.7A 34.8A 39.0A
    Max. Current (A) 23.9A 37.0A 41.0A
    Rated Frequency 50HZ 50HZ 50HZ
    Phase Single phase Single phase Single phase
    Power Factor (COSφ) 1.0 1.0 1.0
    Insulation Class F F F
    Engine Engine Model DH190 DH500 DH550
    Bore Size×Stroke (mm) 90×66 94×76 94×76
    Displacement (cc) 420 500 550
    Fuel Consumption (g/kWh) ≤374 ≤374 ≤374
    Ignition Electronic ignition
    Engine Type 1 cylinder, 4-stroke, air-cooled
    Fuel Type 90# lead-free gasoline
    Oil Capacity (L) 1.1 1.1 1.1
    Starting System Electric Start

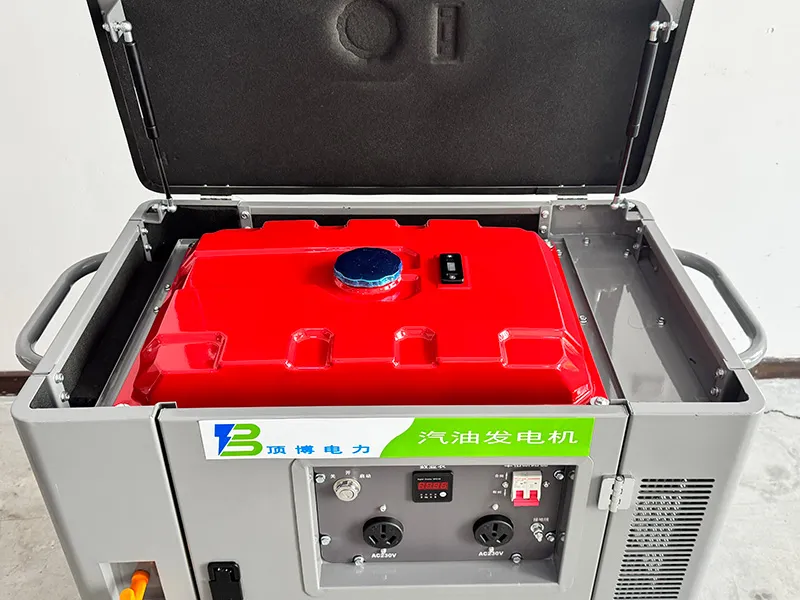

    Others Fuel Tank (L) 25L 25L 25L
    Battery 12V-14AH maintenance-free battery
    Noise Level (dBA/7m) 75
    Dimension (mm) 875×560×785 (without handle)
    Weight (kg) 145kg 156kg 165kg
