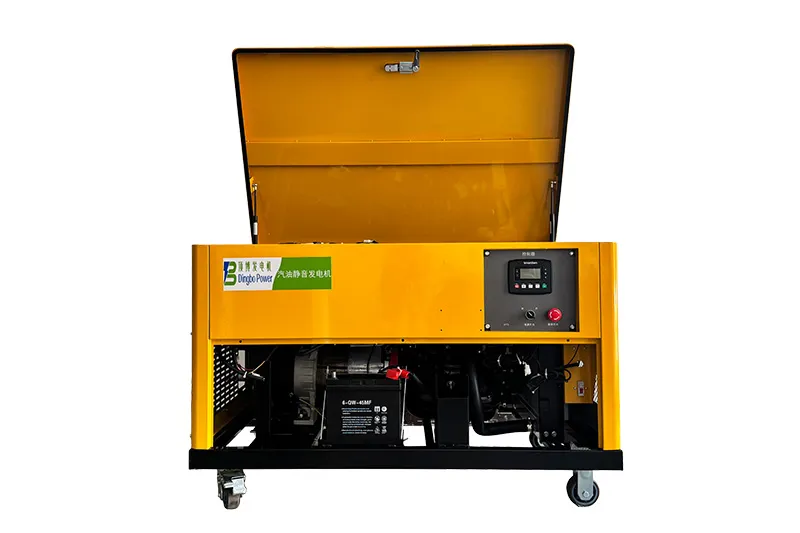

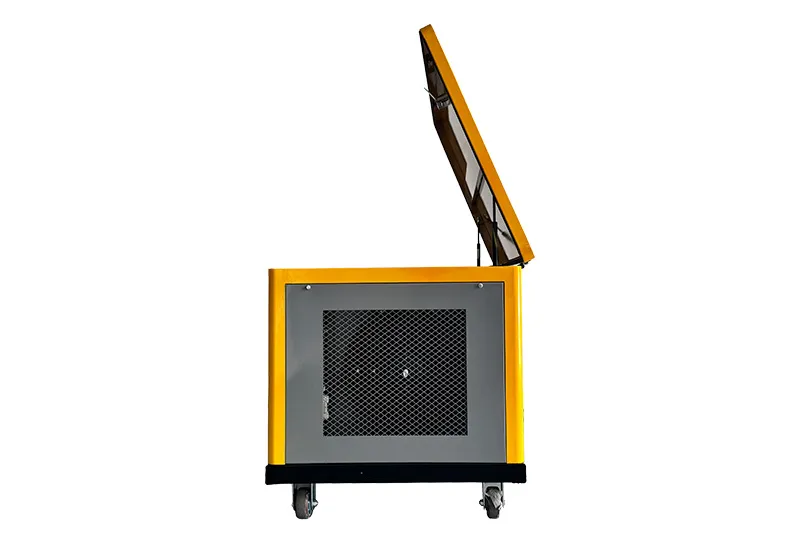

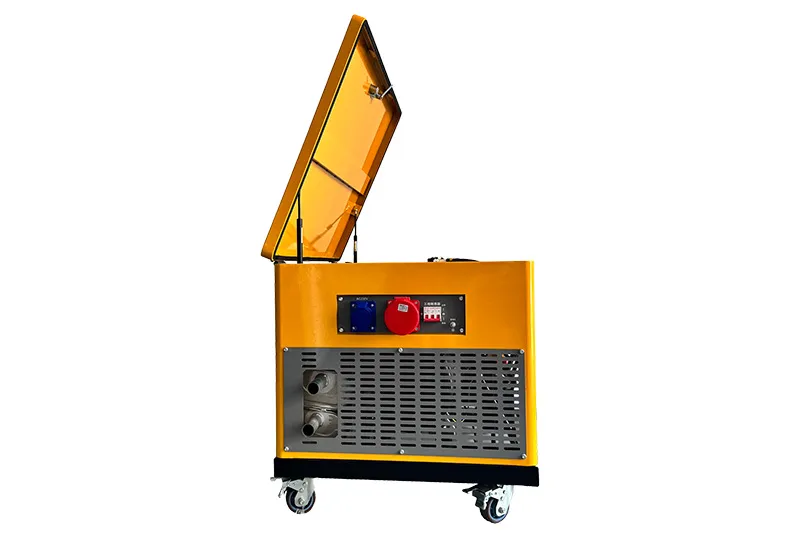

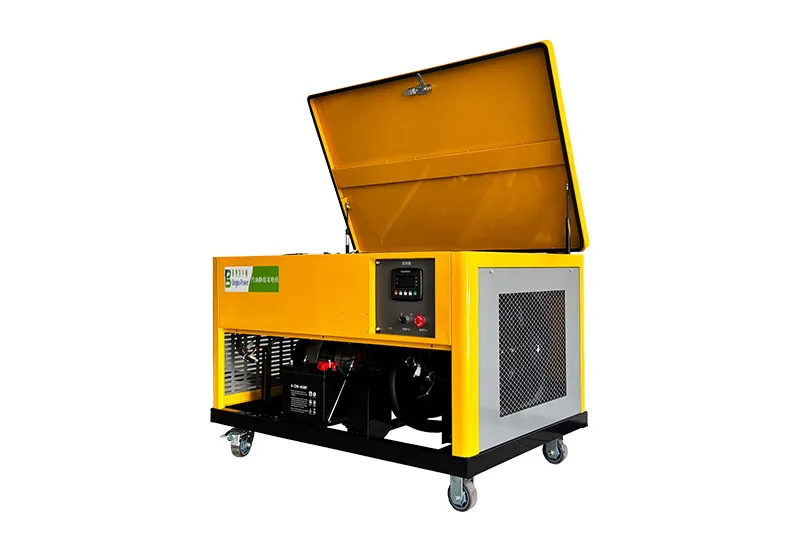

15kW-40kW Gasoline Genset

Water-Cooled Silent Gasoline Generators (Four Cylinder)

Water-Cooled Silent Gasoline Generators (Four Cylinder)
  • Water-Cooled Silent Gasoline Generators (Four Cylinder)
  • Water-Cooled Silent Gasoline Generators (Four Cylinder)
  • Water-Cooled Silent Gasoline Generators (Four Cylinder)
  • Water-Cooled Silent Gasoline Generators (Four Cylinder)

    • 15kW-40kW Gasoline Genset

    Water-Cooled Silent Gasoline Generators (Four Cylinder)

    • Water-Cooled Silent Gasoline Generators (Four Cylinder)
    • Water-Cooled Silent Gasoline Generators (Four Cylinder)
    • Water-Cooled Silent Gasoline Generators (Four Cylinder)
    • Water-Cooled Silent Gasoline Generators (Four Cylinder)
    Request a Quote
    Specifications
    Genset Model DB18000W 15kW Silent Gasoline Generator DB25000W 20kW Silent Gasoline Generator DB31000W 25kW Silent Gasoline Generator DB36000W 30kW Silent Gasoline Generator DB50000W 40kW Silent Gasoline Generator
    Alternator Excitation Mode Brushed, self-excitation, AVR (automatic voltage regulation) Brushed, self-excitation, AVR (automatic voltage regulation) Brushed, self-excitation, AVR (automatic voltage regulation) Brushless PMG type Brushless PMG type
    Prime Power (kW) 15 20 25 30 40
    Standby Power (kW) 16 21 26 31 45
    Rated Voltage (V) 220/380 220/380 220/380 380 380
    Rated Frequency (Hz) 50 50 50 50 50
    Phase Single phase
    Three phase     		Single phase
    Three phase     		Single phase
    Three phase     		Three phase Three phase
    Power Factor (COSφ) 1/0.8 1/0.8 1/0.8 0.8 0.8
    Insulation Class F F F F F

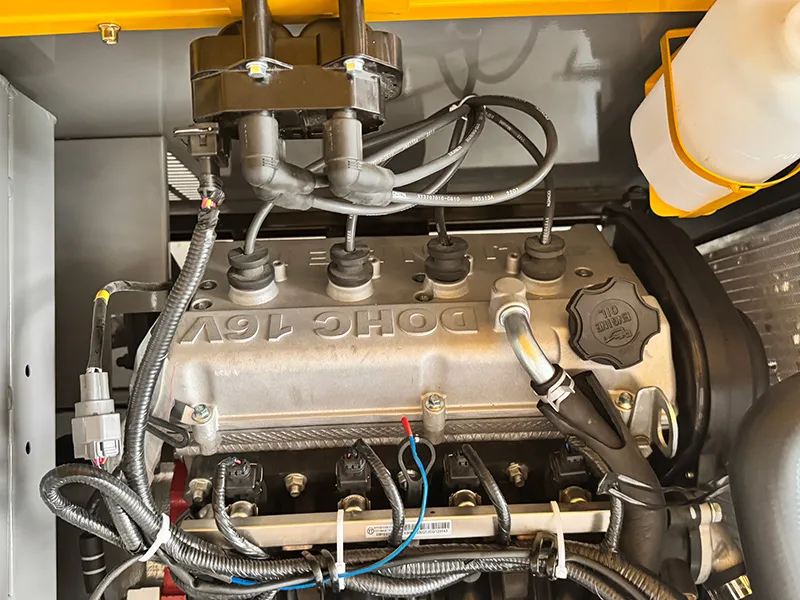

    Engine Engine Model 465Q 465Q CG12 CG12 RQ23
    Bore Size×Stroke (mm) 65×78 65×78 65×78 65×78 91×86
    Displacement (cc) 998 998 1498 1498 2230
    Engine Type 4 cylinder, water-cooled
    Fuel Type Gasoline
    Oil Capacity (L) 2.8 2.8 3 3 4.2
    Starting System Electric Start
    Genset Fuel Tank (L) 30 30 35 35 50
    Noise Level (dBA/7m) 75 75 75 75 75
    Dimension (mm) 1160×725×850 1160×725×850 1300×725×850 1300×725×850 1630×1001×952
    Weight (kg) 282 290 324 324 560
