Product Details

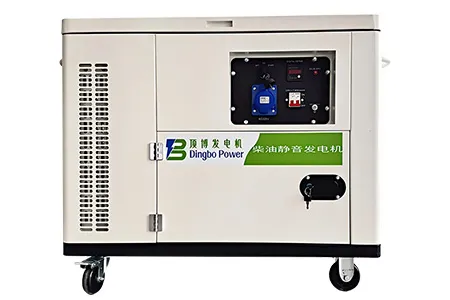

12kW/15kW Air-Cooled Silent Diesel Generators
Features
- Equipped with a reliable twin-cylinder, 4-stroke, air-cooled diesel engine for low emissions and stable performance—suitable for demanding power needs.
- The silent diesel generator provides reliable output, featuring a full-copper alternator with an automatic voltage regulator (AVR) system that ensures strong excitation and minimal voltage fluctuations.
- The generator’s rugged structure is built with a reinforced frame and has built-in caster wheels for easy transport across job sites, making it suitable for outdoor locations.
- The silent genset offers built-in overload safety protection and low oil level shutdown to protect the unit and extend its lifespan.
- The air-cooled silent genset comes standard with a specially engineered noise-reducing muffler system that effectively suppresses noise, making it suitable for residential or noise-sensitive environments.
Specifications
| Genset Model |
DB12500CJ |
DB15000CJ |
| Alternator |
Excitation Mode |
Brushed, self-excitation, AVR (automatic voltage regulation) |
| Prime Power (kW) |
12 |
15 |
| Standby Power (kW) |
13 |
16 |
| Rated Voltage (V) |
220/380 |
220/380 |
| Frequency (Hz) |
50 |
50 |
| Phase |
Single phase
Three phase |
| Power Factor (COSφ) |
1/0.8 |
1/0.8 |
| Insulation Class |
F |
F |
| Engine |
Engine Model |
KD292 |
2V95 |
| Bore Size×Stroke (mm) |
92×75 |
95×75 |
| Displacement (cc) |
997 |
1247 |
| Engine Type |
2 cylinder, air-cooled, direct injection |
| Fuel Type |
Diesel |
| Oil Capacity (L) |
2.5 |
3.2 |
| Starting System |
Electric Start |
| Genset |
Fuel Tank (L) |
30 |
30 |
| Noise Level (dBA/7m) |
78 |
78 |
| Dimension (mm) |
1255×755×865 |
1255×755×982 |
| Weight (kg) |
300 |
340 |

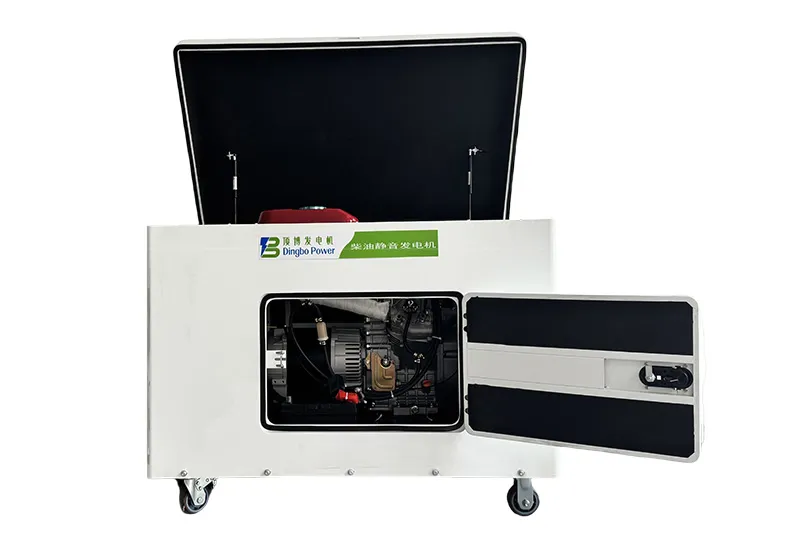

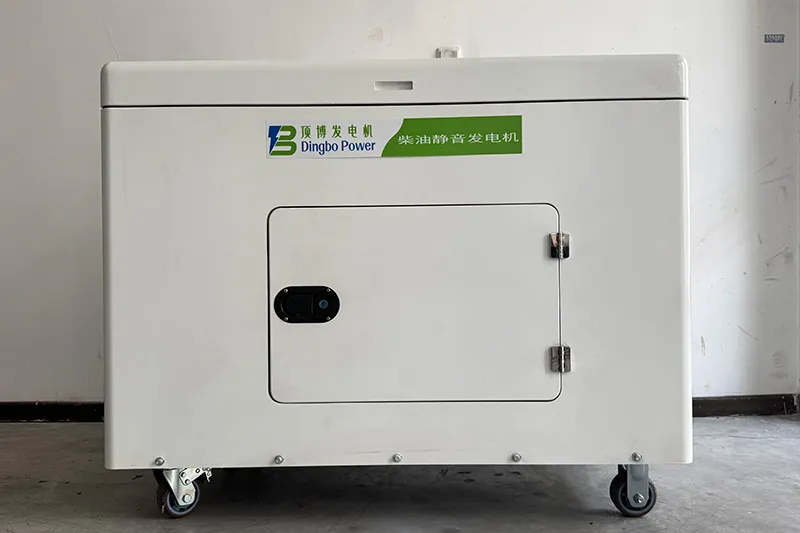

15kW/20kW Air-Cooled Silent Diesel Generators
Features

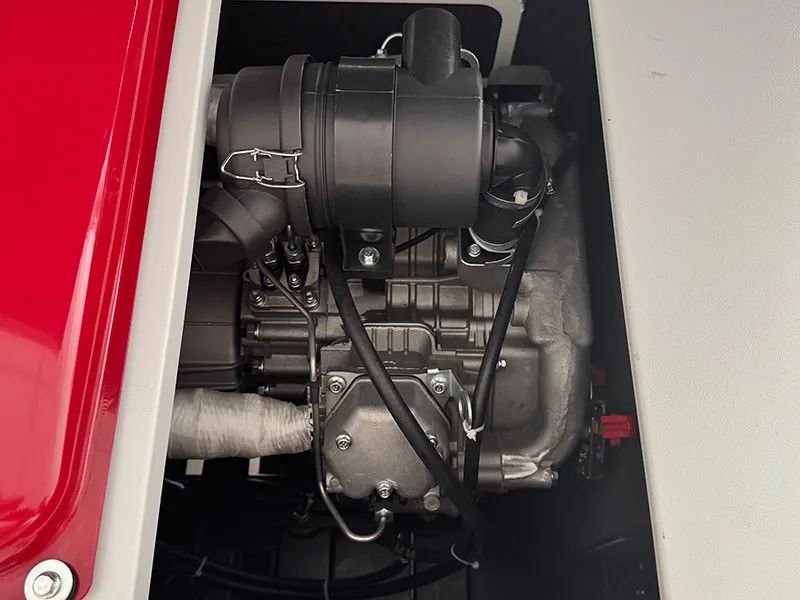

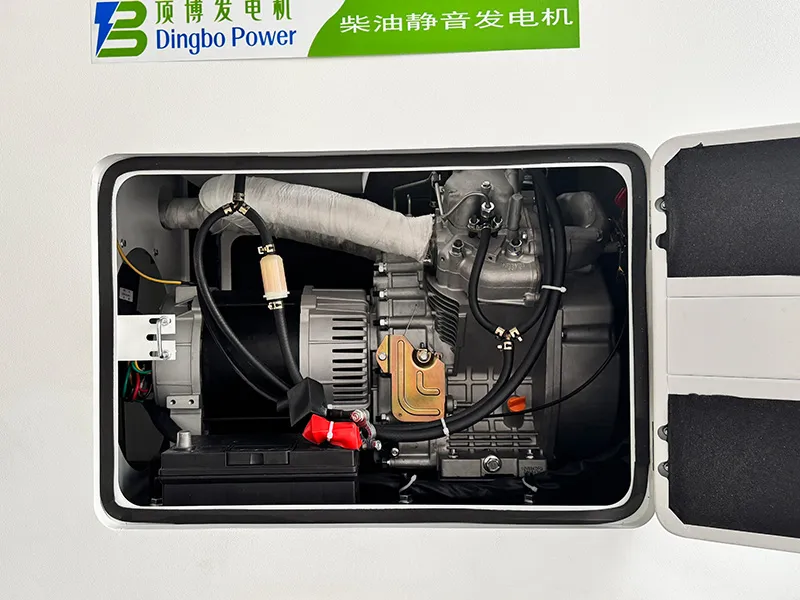

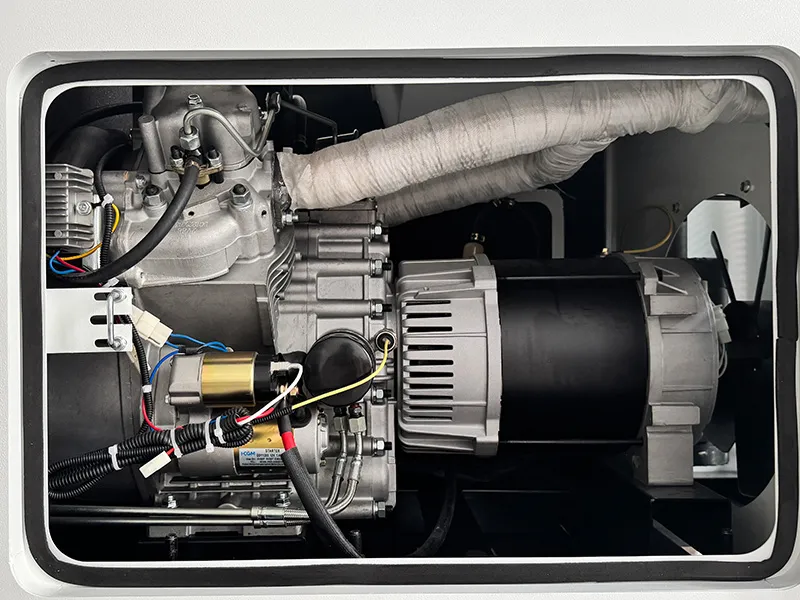

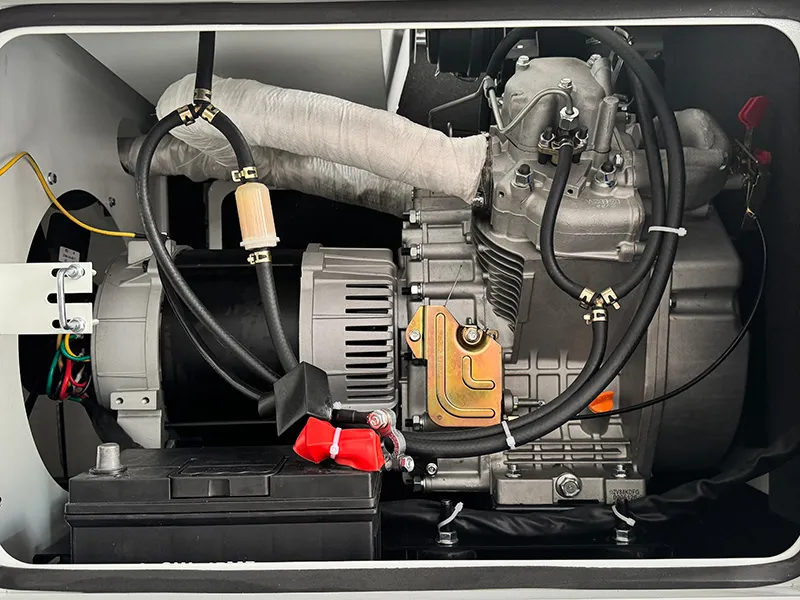

- Utilizing a powerful V-type twin-cylinder, 4-stroke, air-cooled engine configuration for enhanced stability and efficiency, combined with a large copper alternator, this silent diesel generator ensures the delivery of high output under continuous load.

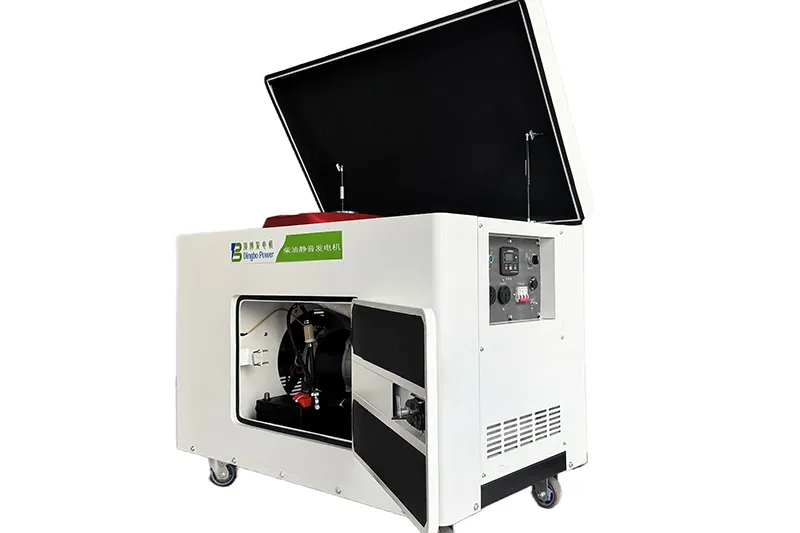

- Features a premium acoustic housing with imported sound-absorbing insulation, with the operational noise kept at or below 78 dB, ensuring ultra-silent enclosure design.

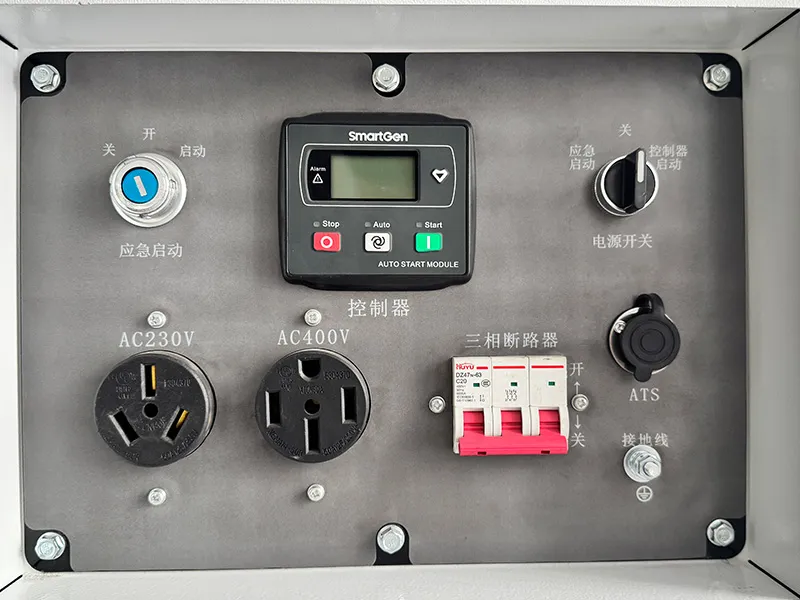

- This air-cooled diesel generator utilizes a maintenance-free battery and user-friendly panel, with a long-life battery life and a rugged power connection panel with anti-drop sockets and terminals for secure wiring.

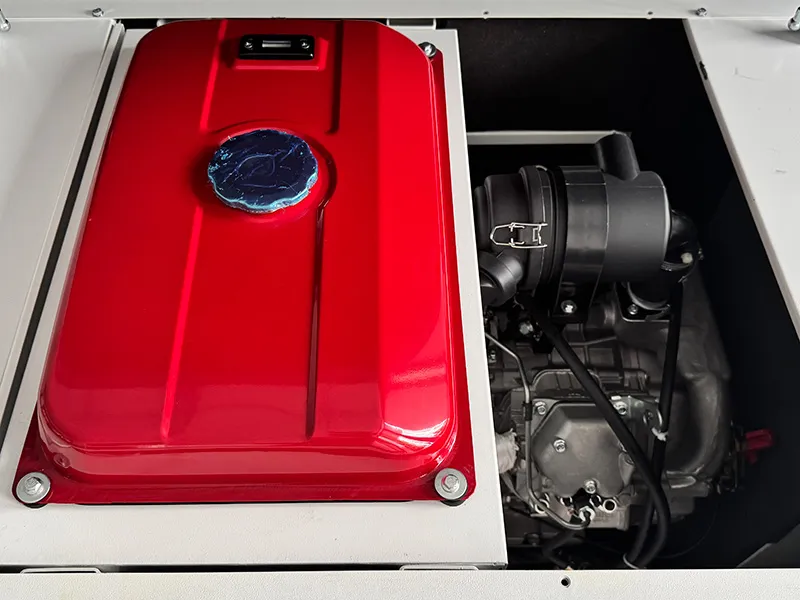

- Outfitted with a large-capacity fuel tank and comprehensive protection system, the genset supports an extended runtime of continuous 8-hour operation at a rated load with stable performance.
Specifications
| Genset Model |
DB18000CJ |
DB25000CJ |
| Alternator |
Excitation Mode |
Brushed, self-excitation, AVR (automatic voltage regulation) |
| Prime Power (kW) |
18 |
15 |
| Standby Power (kW) |
20 |
16 |
| Rated Voltage (V) |
220/380 |
220/380 |
| Frequency (Hz) |
50 |
50 |
| Phase |
Single phase
Three phase |
| Power Factor (COSφ) |
1/0.8 |
1/0.8 |
| Insulation Class |
F |
F |
| Engine |
Engine Model |
2V98 |
2V95 |
| Bore Size×Stroke (mm) |
98×88 |
95×75 |
| Displacement (cc) |
1326 |
1247 |
| Engine Type |
2 cylinder, air-cooled, direct injection |
| Fuel Type |
Diesel |
| Oil Capacity (L) |
3.2 |
3.2 |
| Starting System |
Electric Start |
| Genset |
Fuel Tank (L) |
30 |
30 |
| Noise Level (dBA/7m) |
78 |
78 |
| Dimension (mm) |
1300×800×1000 |
1255×755×982 |
| Weight (kg) |
350 |
340 |
